What Happens before Deployment? GitOps Mechanism

This article explains the process before a deployment begins in PipeCD. Since PipeCD is pull-based, there are various processes that take place before a deployment starts.

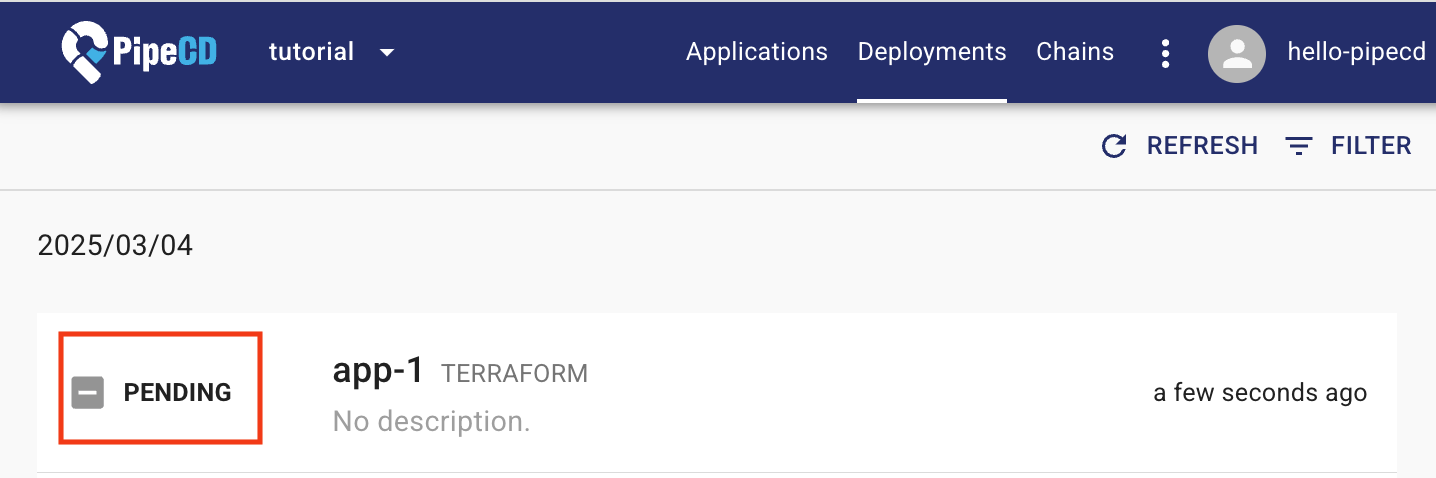

Probably, you have felt “What is Pending??” at least once: Pending

The target audience is those who want to:

  • troubleshoot when “deployment doesn’t start as expected…”
  • understand GitOps mechanisms and implementation
  • contribute to PipeCD

This article is based on PipeCD v0.51.2 (latest version at time of writing). The specifications in the plugin version are slightly different.

This article omits discussion of Deployment Chain (due to complexity).

Overview

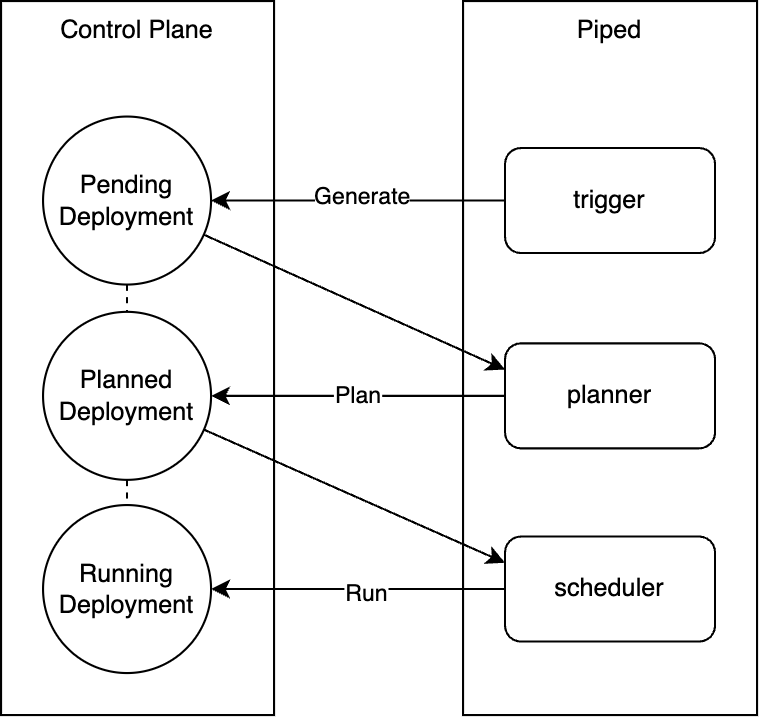

The state transitions before deployment begins are shown in the diagram below.

stateDiagram-v2
  Not_Started --> PENDING: [1] Trigger
  PENDING --> PLANNED: [2] Plan (Determine pipeline)
  PLANNED --> RUNNING: [3] Schedule (Execute stages)

Phases [1] through [3] are executed asynchronously by separate components (goroutines). This mechanism allows deployment to resume even if Piped crashes during the process.

1. Trigger

PipeCD initiates application deployment through four types of triggers:

  • [A] Detecting changes in Git (main method)
  • [B] Manual start from UI/pipectl
  • [C] Automatic deployment on drift detection (requires configuration)
  • [D] Deployment Chain (details omitted)

The above four points can be configured trigger in app.pipecd.yaml. Only [C] is disabled by default.

[A] Detecting changes in Git

This occurs when the following two conditions are met after fetching the latest commit from the Git repository:

  1. There are new commits that haven’t been deployed
  2. There is at least one change in files at the same level or below app.pipecd.yaml

For 2., the detection scope can be adjusted using paths/ignores settings. This allows detection of changes in shared template files located in different directories, for example.

[B] Manual trigger from UI/pipectl

This is a push-style pattern.

From the UI, you can start it on the Application page. This is convenient for cases like “redeploying after a deployment failure due to environment issues rather than application issues.”

You can also start it from pipectl using the following command. This is useful for cases like “direct deployment from CI (exceptionally) or workflows.”

pipectl application sync --app-id={app-id}

[C] Automatic deployment on drift detection (requires configuration)

This occurs when there’s a difference between the Git definition (=desired state) and the actual environment. PipeCD has a separate mechanism called Drift Detection that continuously detects drifts.

This trigger is disabled by default, and manual repair is the basic approach after drift detection. This trigger is for those who want to strictly treat Git as the Single Source of Truth.

Deployment is triggered when an application meets all four of the following conditions:

  1. “Automatic deployment on drift detection” is enabled
    • Set the trigger.onOutOfSync.disabled item to false (default is true)
  2. Drift has occurred (status is OutOfSync)
  3. Not currently deploying
  4. A specified time has passed since the last deployment (default is 5 minutes)
    • This prevents the scenario where “deployment completes but the drift detection mechanism is delayed, causing false drift detection and deployment”
    • Can be configured with the trigger.onOutOfSync.minWindow item

https://pipecd.dev/docs-v0.51.x/user-guide/configuration-reference/#onoutofsync

Trigger code

See the trigger package, trigger.go is the entry point and determiner.go determines whether to deploy or not.

Personally, reading the trigger package significantly improves understanding of PipeCD’s behavior.

https://github.com/pipe-cd/pipecd/blob/v0.51.2/pkg/app/piped/trigger/

2. Plan: Determine Pipeline

This phase determines “how to deploy using which pipeline.” It mainly does two things:

  1. Determine whether to use Quick Sync or Pipeline Sync
  2. Determine stages

The planner instance runs as a goroutine in a 1:1 relationship with Deployment, allowing multiple deployments to be processed concurrently. Also, piped is implemented to prevent multiple deployments from running simultaneously for the same application.

2.1. Determining Quick Sync or Pipeline Sync

What are Quick Sync and Pipeline Sync?

PipeCD has two deployment strategies:

  • Quick Sync

    • Executes deployment with a single stage (K8S_SYNC or ECS_SYNC, etc.)
    • Optimal for cases where “only Git synchronization is needed, no analysis required”
  • Pipeline Sync

    • Executes deployment according to a defined pipeline
    • Optimal for cases requiring staged deployment like Canary deployment
Strategy determination logic

Quick Sync is selected when any of the following conditions are met:

  • [A] User manually starts deployment from UI selecting “Quick Sync”
  • [B] No pipeline is configured in app.pipecd.yaml
  • [C] (k8s only) Conditions in app.pipecd.yaml’s planner.commitMatcher.quickSync are met
  • [D] (except Terraform) No successful deployment exists for that application
  • [E] (k8s only) No changes in workload or config (details)

Pipeline Sync is selected when any of the following conditions are met:

  • [A] User manually starts deployment from UI selecting “Pipeline Sync”
  • [B] planner.alwaysUsePipeline is set to true in app.pipecd.yaml (default is false)
  • [C] (k8s only) Conditions in app.pipecd.yaml’s planner.commitMatcher.pipeline are met

The detailed decision flowchart is like this:

flowchart TD
    Start[Start] --> UI{Triggered from UI and selected 'Auto'?}

    UI -->|Quick Sync selected| QuickSync
    UI -->|Not from UI or selected 'Auto'| Pipeline{Pipeline configured in app.pipecd.yaml?}
    UI -->|Pipeline Sync selected| PipelineSync

    Pipeline-->|No| QuickSync
    Pipeline-->|Yes| CommitMatcherPipe{**k8s only**: meets commitMatcher.pipeline conditions in app.pipecd.yaml?}

    CommitMatcherPipe-->|No / non-k8s | CommitMatcherQuick{**k8s only**: meets commitMatcher.quickSync conditions in app.pipecd.yaml?}
    CommitMatcherPipe-->|Yes| PipelineSync

    CommitMatcherQuick-->|Yes| QuickSync
    CommitMatcherQuick-->|No / non-k8s | Always{alwaysUsePipeline=true in app.pipecd.yaml?}

    Always-->|No| Succeeded{Successful deployment exists?}
    Always-->|Yes| PipelineSync

    Succeeded-->|No| QuickSync
    Succeeded-->|Yes| Varied{Platform-specific determination logic}

    Varied --> QuickSync
    Varied --> PipelineSync

2.2. Determining Stages

There’s not much noteworthy here.

  • For Quick Sync:

    • Since there’s no user-defined pipeline, generates stages like K8S_SYNC for K8s or ECS_SYNC for ECS
  • For Pipeline Sync:

    • Generates stages according to the user-defined pipeline

Planner code

The core logic of Plan is implemented per platform in the planner package. The controller package controls its execution.

https://github.com/pipe-cd/pipecd/blob/v0.51.2/pkg/app/piped/planner/kubernetes/kubernetes.go

3. Schedule: Execute Pipeline

The scheduler component manages pipeline progression. It mainly does two things:

  1. Execute each stage of the pipeline
  2. Execute rollback on failure

Like the planner, the scheduler instance runs as a goroutine in a 1:1 relationship with Deployment, allowing multiple deployments to be processed concurrently.

3.1. Executing Each Stage of the Pipeline

Executes each stage sequentially based on the pipeline generated in the Plan phase. Specific processing content varies by platform.

3.2. Executing Rollback on Failure

If any stage fails, executes the rollback stage. Like 3.1., the rollback stage name and processing content vary by platform.

Scheduler code

The Run() and executeStage() methods in scheduler.go of the controller package are important.

https://github.com/pipe-cd/pipecd/blob/v0.51.2/pkg/app/piped/controller/scheduler.go#L191-L661

The specific processing logic of each stage is in the executor package. The executor package describes “execute this process in this stage,” making it relatively easy to understand.

Appendix: What is the controller?

This section is intended for those interested in code reading.

The controller is the manager of the planner and scheduler. Users don’t need to be aware of it.

The controller package, which contains the planner and scheduler, includes code related to deployment flow control. The controller.go is the entry point, and the controller runs continuously from Piped startup.

The controller performs the following every 10 seconds:

  • Create planner/scheduler for new deployments if needed
  • Delete completed planner/scheduler
  • Notify planner/scheduler when a user cancels deployment

Conclusion

While PipeCD has many other features and code, the trigger and controller form its core. I hope this helps find which code to get hints when you think “it would be nice if PipeCD had a feature like xxx.”
