Introduction to EventWatcher: Connecting CI to PipeCD

This article explains the basics of “EventWatcher”, a crucial feature in practical PipeCD usage.

This article is intended for those who:

• “Don’t know how to integrate CI with PipeCD”
• “Have found the EventWatcher feature but can’t grasp how it works”

This article is based on PipeCD v0.51.2 (latest at the time of writing).

Background: Why EventWatcher is needed

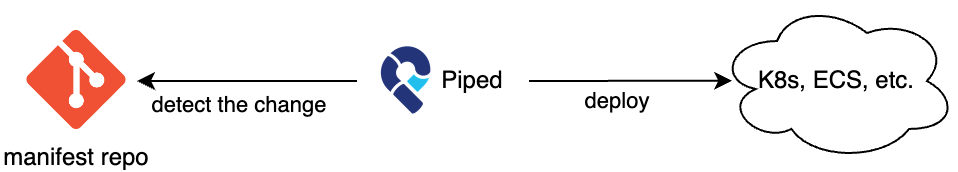

Basically, PipeCD is a CD tool that continuously deploys specified config/manifests.

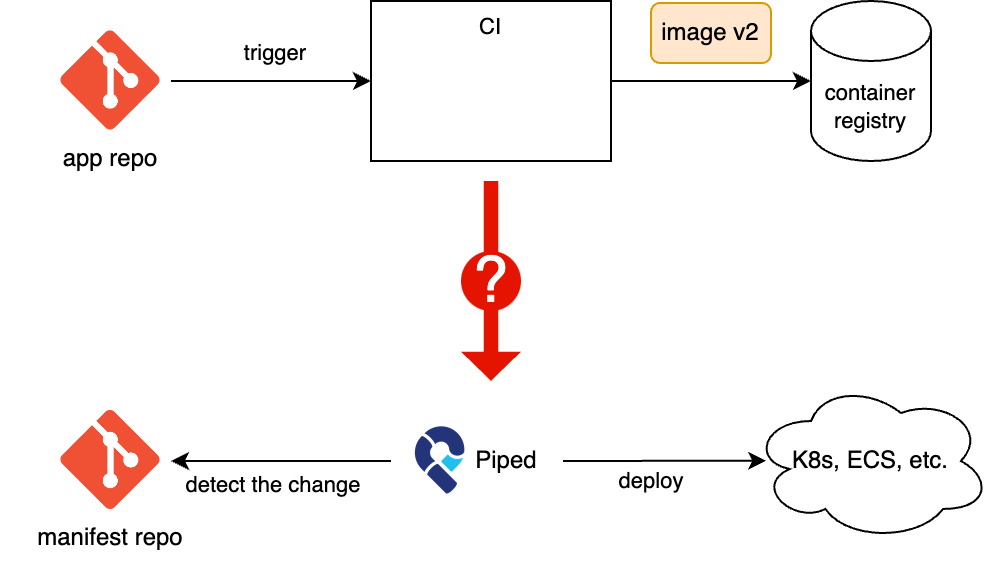

Deployment typically requires manifest changes. So, how can we “deploy using a new image (etc.) after CI completion”? It’s annoying to update the manifest repo manually each time.

This is where the EventWatcher feature comes into play!

What is EventWatcher?

EventWatcher is a feature in PipeCD that seamlessly connects CI and CD. It updates the manifest repo based on events from CI, triggering CD.

https://pipecd.dev/docs-v0.51.x/user-guide/event-watcher/

Mechanism

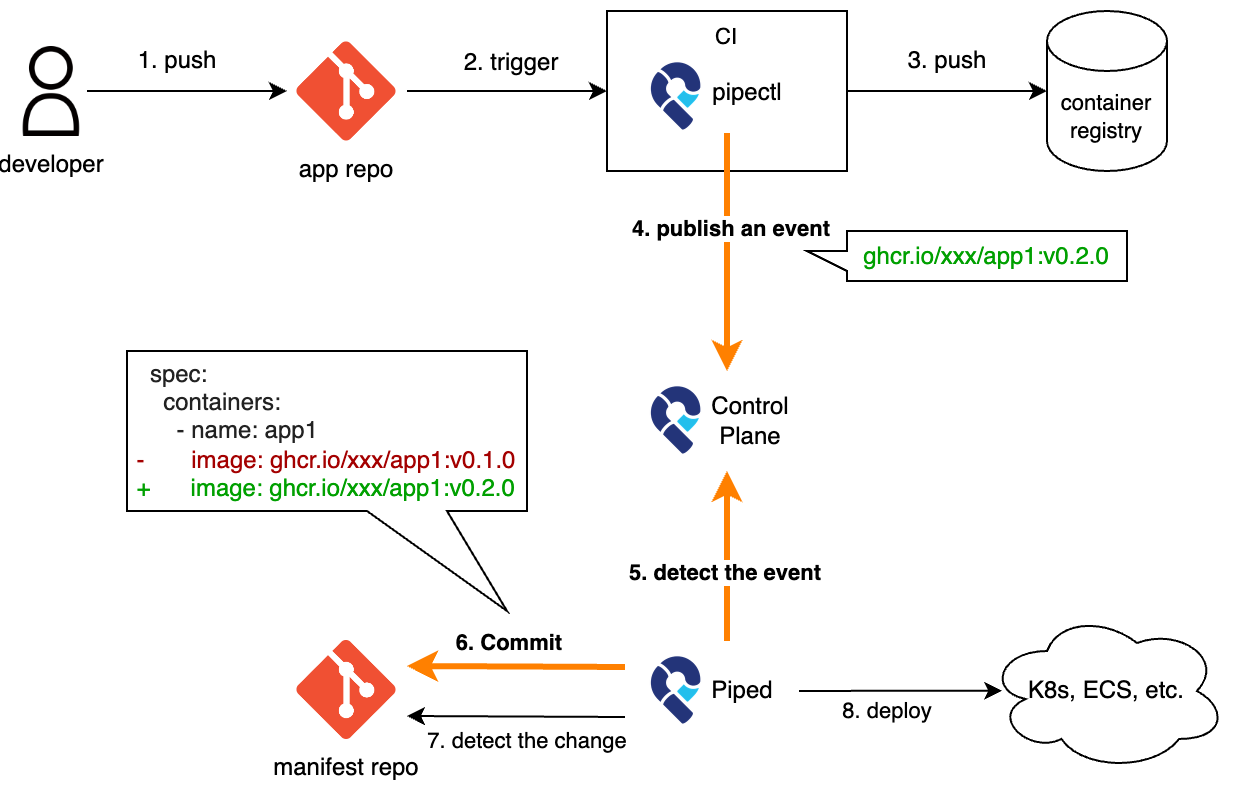

The overall picture of EventWatcher looks like the diagram below.

The EventWatcher feature itself handles steps 4-6:

• 1-3. Develop new app code and store the results (container images, etc.) in a container registry

• 4. Publish an event in CI to pass the new image URI to PipeCD

• 5. Piped detects the event

• 6. Update the manifest repo using the data provided by the event (image URI, etc.)

• 7-8. Automatic deployment occurs through the standard deployment flow of PipeCD

Usage

You need to setup three areas:

1. Piped Configuration

1. Which manifest repo events to handle
2. Commit permissions for the manifest repo

https://pipecd.dev/docs-v0.51.x/user-guide/managing-piped/configuring-event-watcher/

2. app.pipecd.yaml Configuration

1. Which events to handle for the Application (matcher)
2. What actions to take for matched events (handler)

(Example) Configuration to update the spec.template.spec.containers[0].image field in deployment.yaml when the helloworld-image-update event is triggered:

apiVersion: pipecd.dev/v1beta1
kind: KubernetesApp
spec:
  name: helloworld
  eventWatcher:
    - matcher: # Which events to handle
        name: helloworld-image-update
      handler: # What actions to take
        type: GIT_UPDATE
        config:
          replacements:
            - file: deployment.yaml
              yamlField: $.spec.template.spec.containers[0].image

Full configuration reference: https://pipecd.dev/docs-v0.51.x/user-guide/configuration-reference/#eventwatcher

3. Event Triggering via pipectl or GitHub Actions

1. Event name (set in app.pipecd.yaml as matcher.name)
2. New value (image URI, etc.)

(Example) Command to trigger an event named helloworld-image-update to change the image URI to ghcr.io/xxx/helloworld:v0.2.0:

pipectl event register \
    --address={CONTROL_PLANE_API_ADDRESS} \
    --api-key={API_KEY} \
    --name=helloworld-image-update \
    --data=ghcr.io/xxx/helloworld:v0.2.0

If you use GitHub Actions for your CI, using PipeCD’s official actions-event-register is recommended (configurations are the same):

https://github.com/marketplace/actions/pipecd-register-event

For example, triggering an event named helloworld-image-update to change the image URI to ghcr.io/xxx/helloworld:v0.2.0:

      - uses: pipe-cd/actions-event-register@v1.2.0
        with:
          api-address: ${{ secrets.API_ADDRESS }}
          api-key: ${{ secrets.API_KEY }}
          event-name: helloworld-image-update
          data: ghcr.io/xxx/helloworld:v0.2.0

You can also handle events differently by environment using the --labels option, even for events with the same name.

Advanced: --contexts Option

Adding --contexts to pipectl event register allows you to include various information in the manifest repo commit. For example, passing the “commit hash and URL of the app repo that triggered the event” makes it easier to track “which app repo changes caused this event” in the manifest repo. This is particularly useful when deployments occur frequently.

https://pipecd.dev/docs-v0.51.x/user-guide/event-watcher/#optional-using-contexts

Appendix: Code Reading

The EventWatcher code is consolidated in one file (though it’s quite long). Remembering that “EventWatcher runs continuously as a goroutine from Piped startup” makes it slightly easier to read.

https://github.com/pipe-cd/pipecd/blob/v0.50.2/pkg/app/piped/eventwatcher/eventwatcher.go

Conclusion

Using EventWatcher enables seamless integration between CI and CD. There are various advanced applications, and it would be great to see more examples being shared.

Additionally, Deployment Traces feature enhances the integration of CI and PipeCD. For more details, please see this article:

https://pipecd.dev/blog/2024/12/26/the-gap-between-ci/cd-and-how-pipecd-appeared-to-fulfill-the-gap/
